ESP32 Robot Car Motor & Sensor Shield

Connect a compatible ESP32 controller to motors, sensors and servos through one expansion board.

Functions

• Add motor-driving connections to a robot-car build.
• Connect supported sensors and servos.
• Organise power and signal wiring around a compatible controller.

Components & hardware

Car expansion shield with motor, servo, sensor, serial and I2C connections; main controller and robot are separate.

Technology

Motor drivers plus routed ESP32 input/output connections.

How it works

The main controller supplies logic signals; the shield routes them to connected devices and provides the drive interface for motors. It does not replace the controller or provide a complete robot.

Specifications

• Kit type: Robot Expansion Board.
• Platform: esp32.
• Control and interfaces: Motor drivers plus routed ESP32 input/output connections.
• Selected option: Car shield only — controller and robot excluded.

What's included

Selected configuration and described hardware: Car shield only — controller and robot excluded. Car expansion shield with motor, servo, sensor, serial and I2C connections; main controller and robot are separate.

Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.

Suggested skill level

Intermediate — check compatibility and wiring before use.

Project ideas

• Wire a compatible car's motors and sensors.
• Prototype a sensor-triggered stop.

Before you build

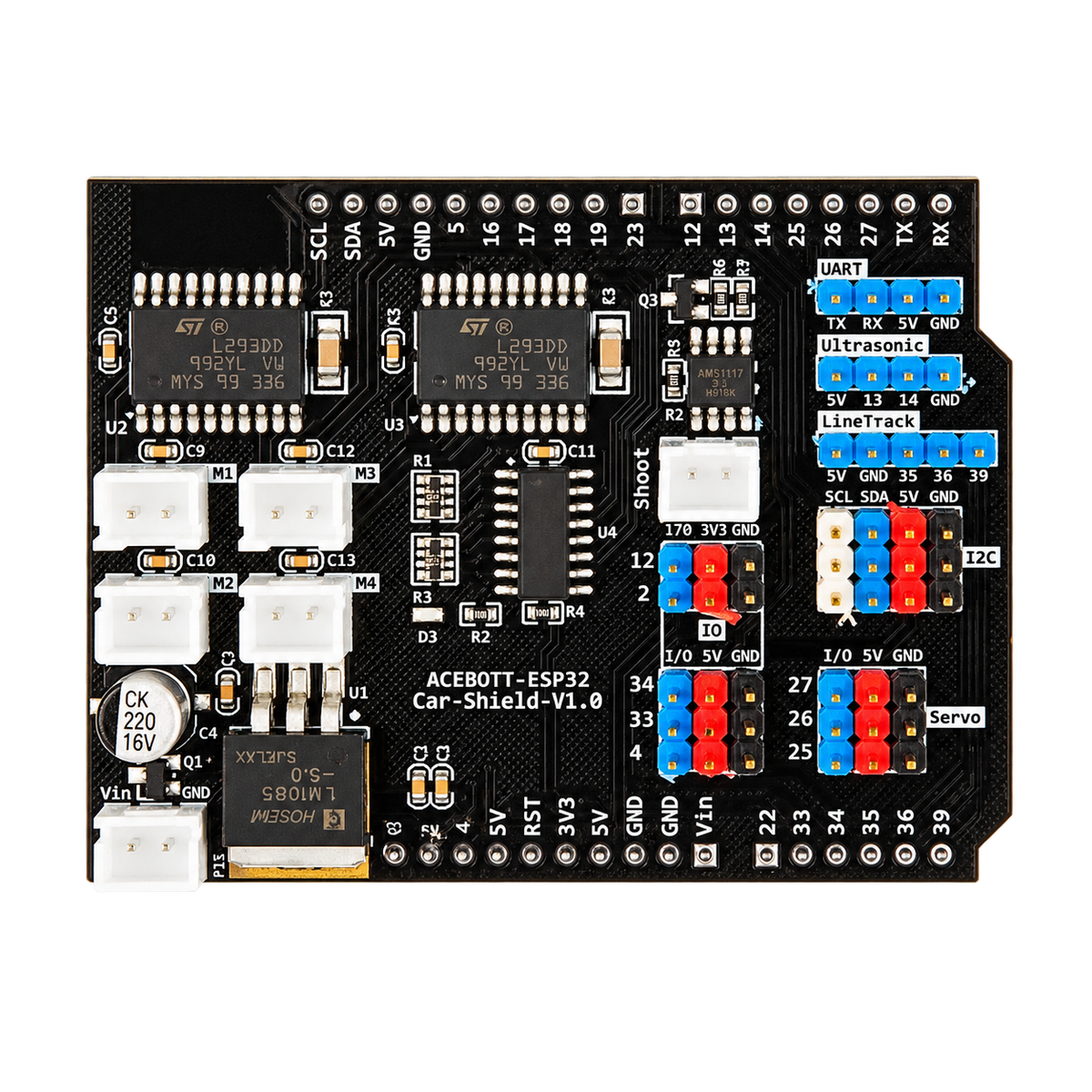

Confirm the controller pin layout and shield revision before ordering. The source listing describes V2, while the available photograph is marked V1.0; do not use the photograph as a revision guarantee.
