Programmable LED Module

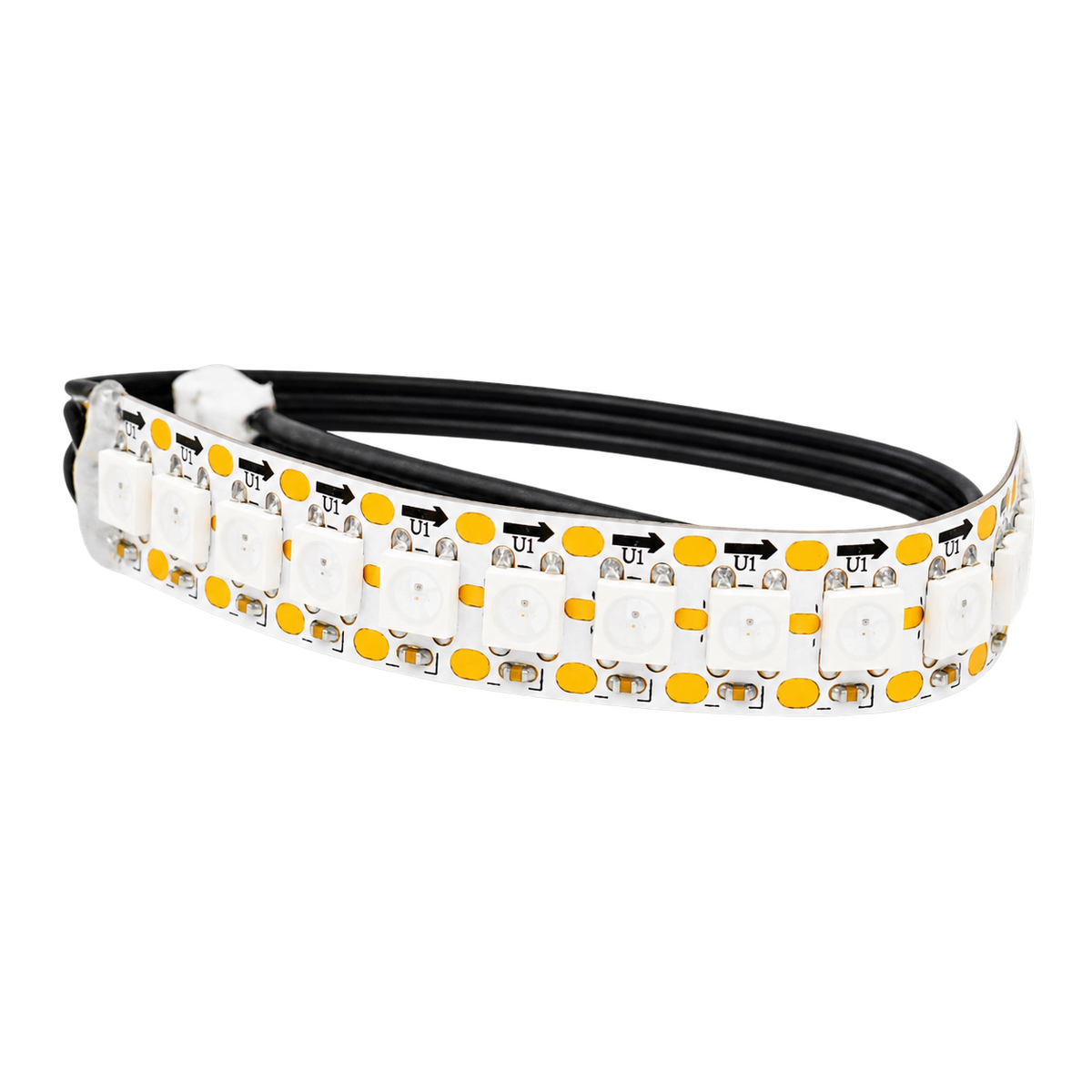

14-LED Addressable RGB Light Strip
$9.95 AUD
Not sure which kit to choose?Check exactly what comes in the box.
Match the controller, batteries, and tools to your setup.
Read the assembly and coding guide before your first build.
Add programmable colour patterns and status feedback to a robot or electronics project.
Functions
- Set individual LED colours.
- Create moving patterns and brightness effects.
- Use light to display a project's state.
Components & hardware

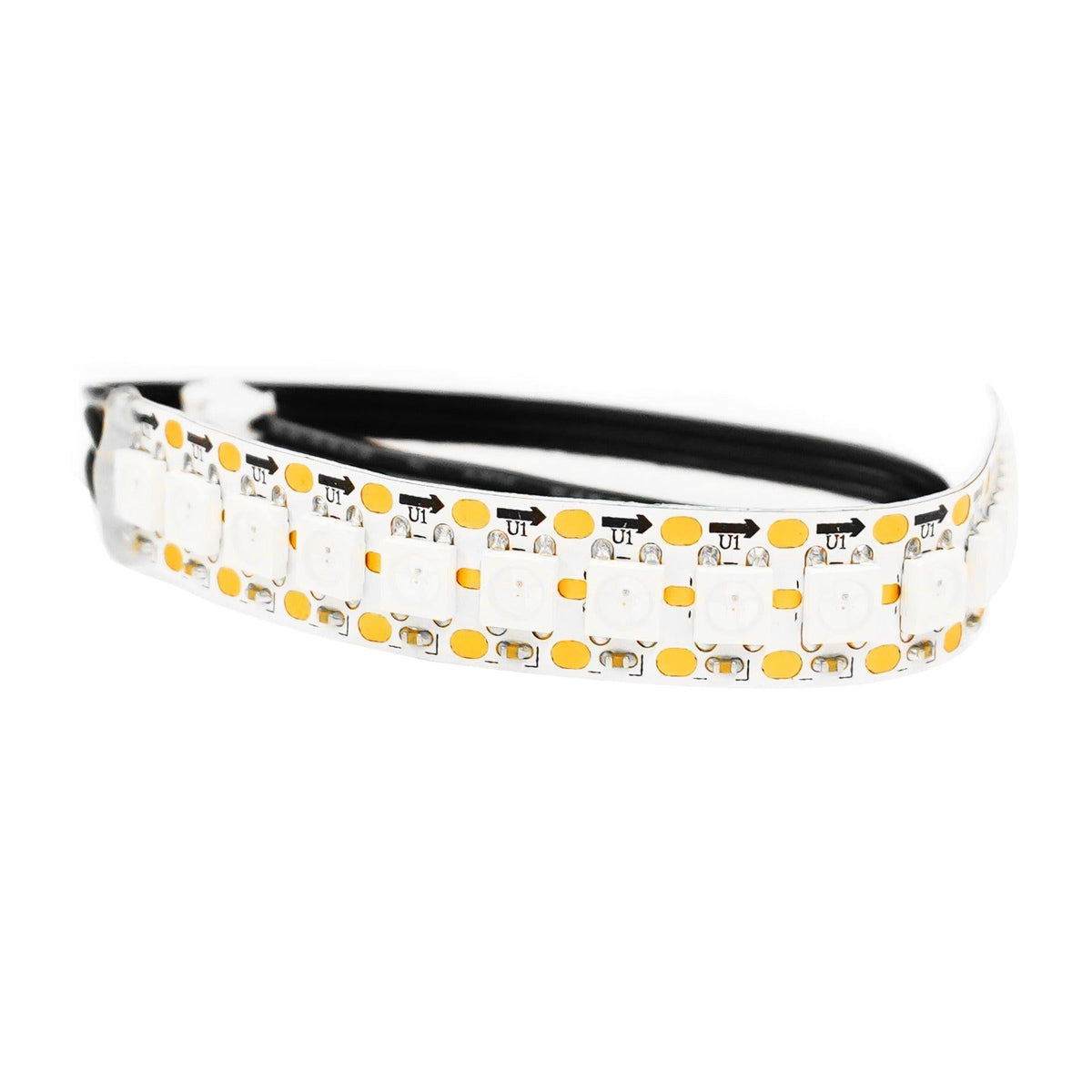

One flexible strip containing fourteen addressable RGB LEDs with its module connection. Controller and power supply are separate.
Technology
WS2812-type addressable LEDs and a serial data signal.
How it works
Each LED receives colour data through the chain. Your program changes the red, green and blue values over time to create a pattern or indicate a sensor result.
Specifications
- Kit type: Programmable LED Module.
- Control and interfaces: WS2812-type addressable LEDs and a serial data signal.
- Selected option: One flexible strip with fourteen LEDs.
What's included
Selected configuration and described hardware: One flexible strip with fourteen LEDs. One flexible strip containing fourteen addressable RGB LEDs with its module connection. Controller and power supply are separate.
Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.
Suggested skill level
Beginner to intermediate — guided assembly and basic coding.
Project ideas
- Create a moving colour animation.
- Use LEDs as a sensor status indicator.
Before you build
This is one strip, not fourteen strips. Match data level, pinout and regulated supply to the exact module; size the supply for the chosen brightness and number of lit LEDs.
