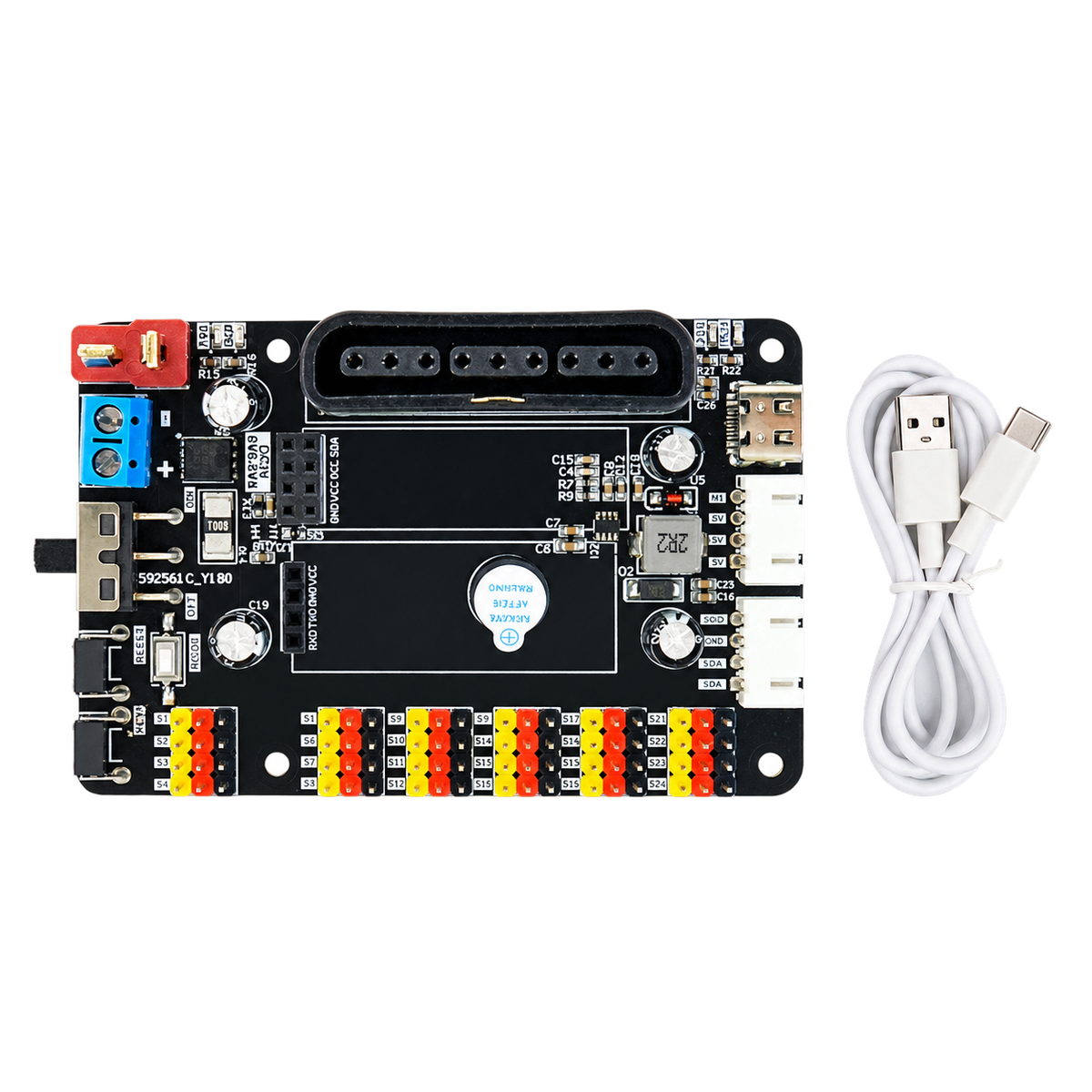

24-Channel PWM Robot Servo Controller — product view. Controller board only — handle, battery and servos excluded. Enlarge image
24-Channel PWM Robot Servo Controller — product view. Controller board only — handle, battery and servos excluded.

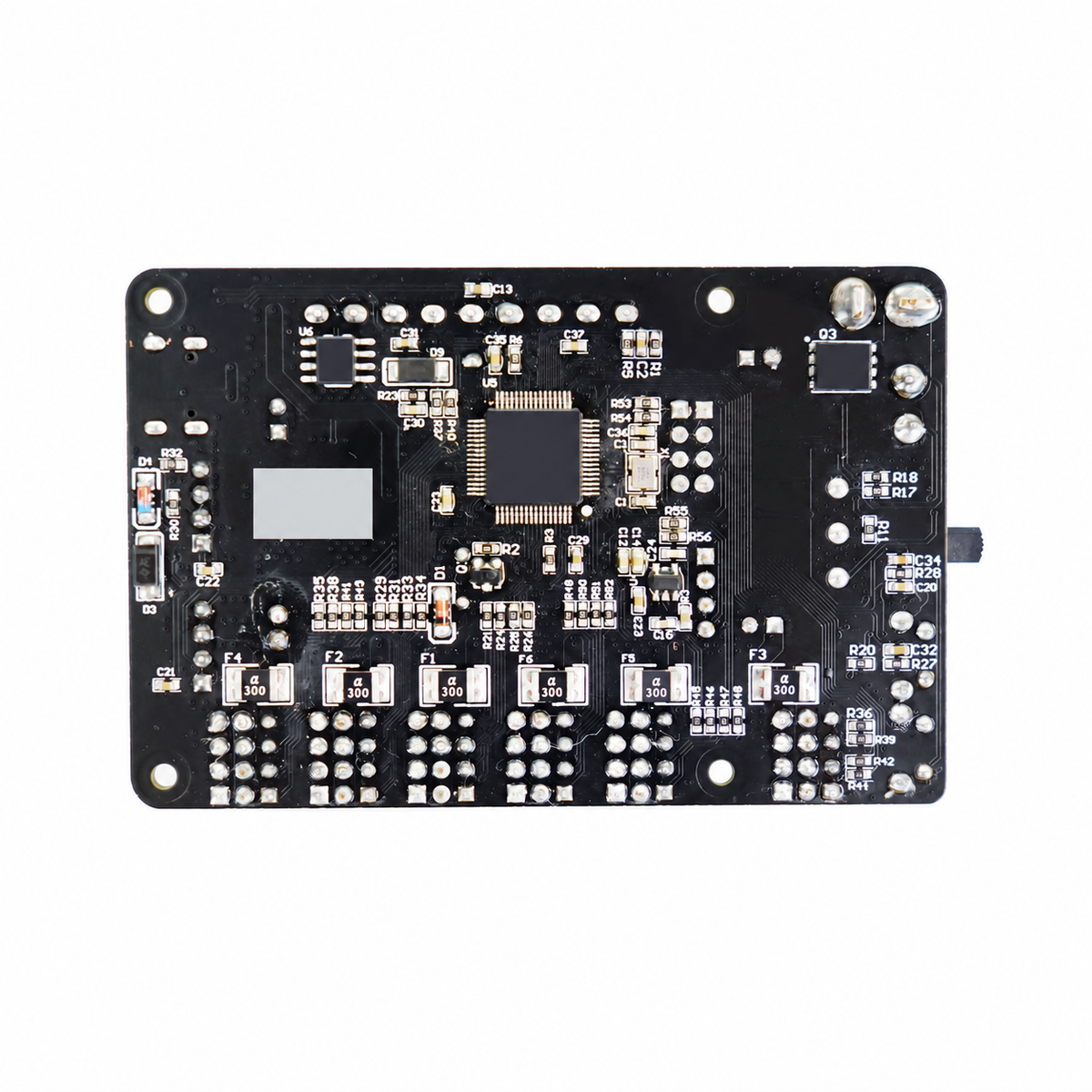

24-Channel PWM Robot Servo Controller — additional product or project detail. Controller board only — handle, battery and servos excluded. Enlarge image
24-Channel PWM Robot Servo Controller — additional product or project detail. Controller board only — handle, battery and servos excluded.

Browse the views. Check the selected configuration for included parts; project examples may show separate accessories.

Servo Controller

24-Channel PWM Robot Servo Controller

Programmable robotics kit

$89.95 AUD

Kit configurationController board only — handle, battery and servos excluded

Not sure which kit to choose?
01 /

Check exactly what comes in the box.

02 /

Match the controller, batteries, and tools to your setup.

03 /

Read the assembly and coding guide before your first build.

Organise a larger servo project around a single multi-channel control board.

Functions

  • Connect up to twenty-four PWM servo channels.
  • Communicate with a compatible host through serial control.
  • Explore supported display and control expansions.

Components & hardware

STM32-based controller board with servo outputs and interfaces for optional Bluetooth, wireless control and OLED hardware.

Technology

STM32F103 controller; multi-channel PWM and serial communication.

How it works

The board generates repeated control pulses for each channel. Host commands can update several servo targets, helping a robot arm or multi-joint mechanism execute coordinated movements.

Specifications

  • Kit type: Servo Controller.
  • Control and interfaces: STM32F103 controller; multi-channel PWM and serial communication.
  • Selected option: Controller board only — handle, battery and servos excluded.

What's included

Selected configuration and described hardware: Controller board only — handle, battery and servos excluded. STM32-based controller board with servo outputs and interfaces for optional Bluetooth, wireless control and OLED hardware.

Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.

Suggested skill level

Intermediate — check compatibility and wiring before use.

Project ideas

  • Coordinate a multi-joint arm.
  • Build a repeated movement sequence.

Before you build

Servos, hand controller and battery are excluded. Optional interfaces do not imply included accessories. Check supply voltage, total current, signal compatibility and grounding before connecting a full set.
