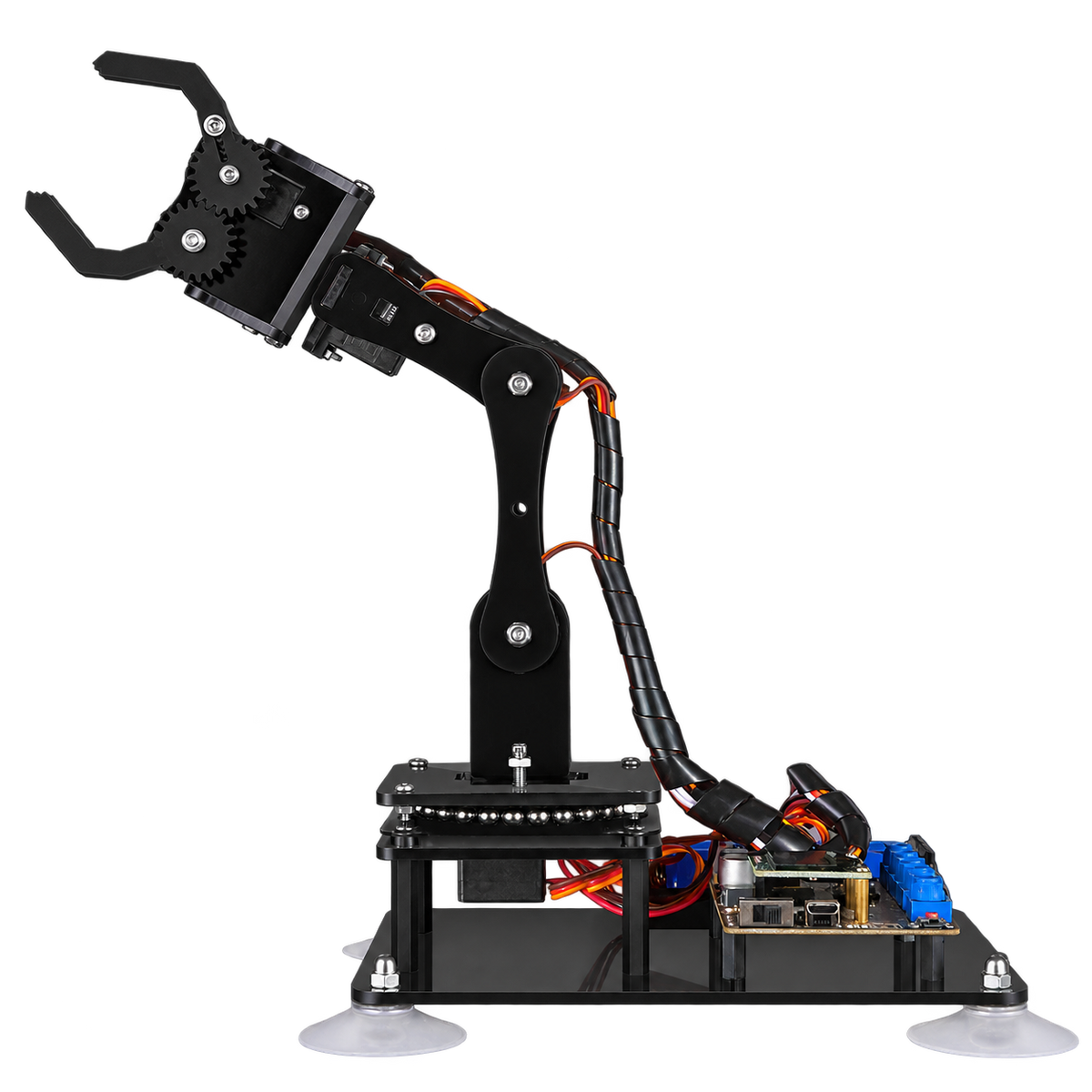

5-DOF Programmable Robot Arm — product view. Arm kit — batteries excluded. Enlarge image
5-DOF Programmable Robot Arm — product view. Arm kit — batteries excluded.

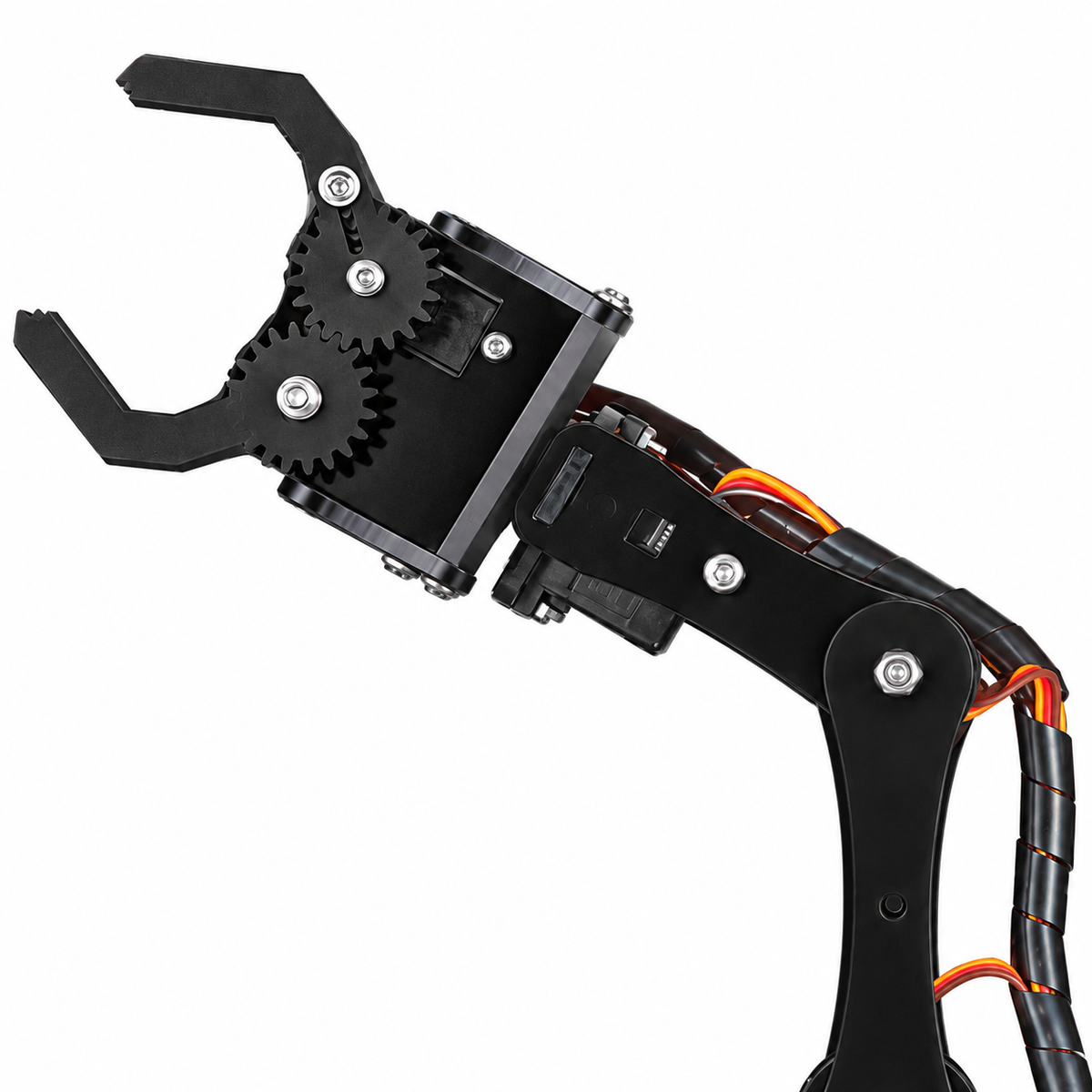

5-DOF Programmable Robot Arm — component close-up. Arm kit — batteries excluded. Enlarge image
5-DOF Programmable Robot Arm — component close-up. Arm kit — batteries excluded.

Browse the views. Check the selected configuration for included parts; project examples may show separate accessories.

Robotic Arm Kit

5-DOF Programmable Robot Arm

Programmable robotics kit Batteries sold separately

$159.95 AUD

Kit configurationArm kit — batteries excluded

Not sure which kit to choose?
01 /

Check exactly what comes in the box.

02 /

Match the controller, batteries, and tools to your setup.

03 /

Read the assembly and coding guide before your first build.

Turn a sequence of positions into a working pick-and-place or drawing experiment.

Functions

  • Position the arm with onboard adjustment knobs.
  • Explore recorded movements and repeatable action sequences.
  • Control the arm with Arduino code or compatible desktop software.

Components & hardware

Acrylic arm structure, Arduino-compatible driver board, six servos, OLED display, bearing turntable, suction feet, cables and assembly hardware.

Technology

ATmega328P controller; Arduino C/C++ and Processing examples.

How it works

Each servo receives a target position. Coordinating the joints changes the gripper's location and orientation; opening and closing the gripper adds object handling. Start by calibrating each joint before combining movements.

Specifications

  • Kit type: Robotic Arm Kit.
  • Platform: arduino.
  • Control and interfaces: ATmega328P controller; Arduino C/C++ and Processing examples.
  • Selected option: Arm kit — batteries excluded.

What's included

Selected configuration and described hardware: Arm kit — batteries excluded. Acrylic arm structure, Arduino-compatible driver board, six servos, OLED display, bearing turntable, suction feet, cables and assembly hardware.

Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.

Suggested skill level

Beginner to intermediate — guided assembly and basic coding.

Project ideas

  • Record a pick-and-place sequence.
  • Draw repeated shapes with the arm.

Before you build

DIY assembly required. Batteries are excluded. Follow the exact board's power instructions and keep loads within the documented limits.

Need help checking compatibility? Ask Kitnology before choosing parts.
