Servo Controller
8-Channel PWM Servo Test & Control Board
$49.95 AUD
Not sure which kit to choose?Check exactly what comes in the box.
Match the controller, batteries, and tools to your setup.
Read the assembly and coding guide before your first build.
Position and test compatible PWM servos with physical knobs and buttons.
Functions
- Adjust up to eight separate servo outputs.
- Test a servo without writing code.
- Set up motion experiments on the bench.
Components & hardware

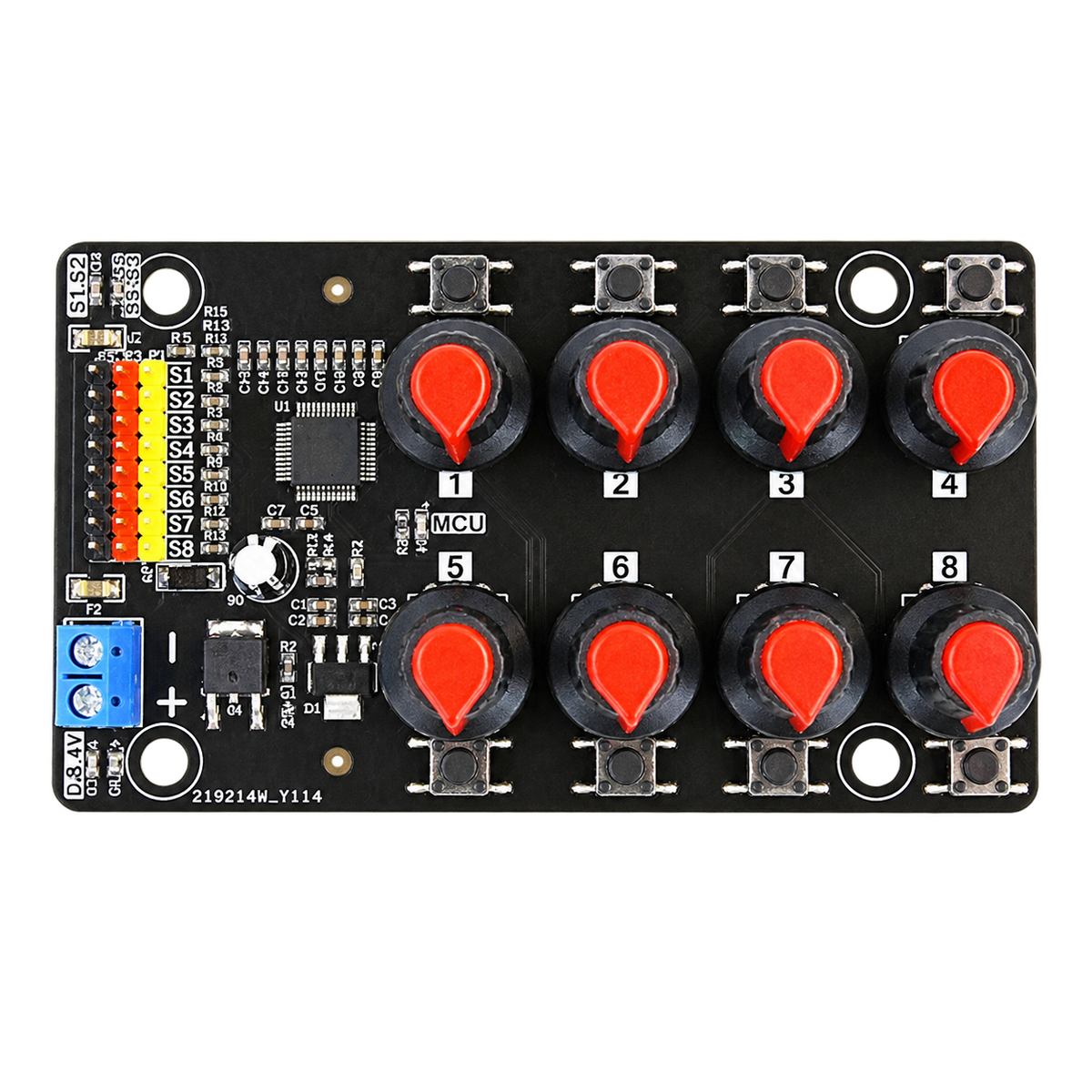

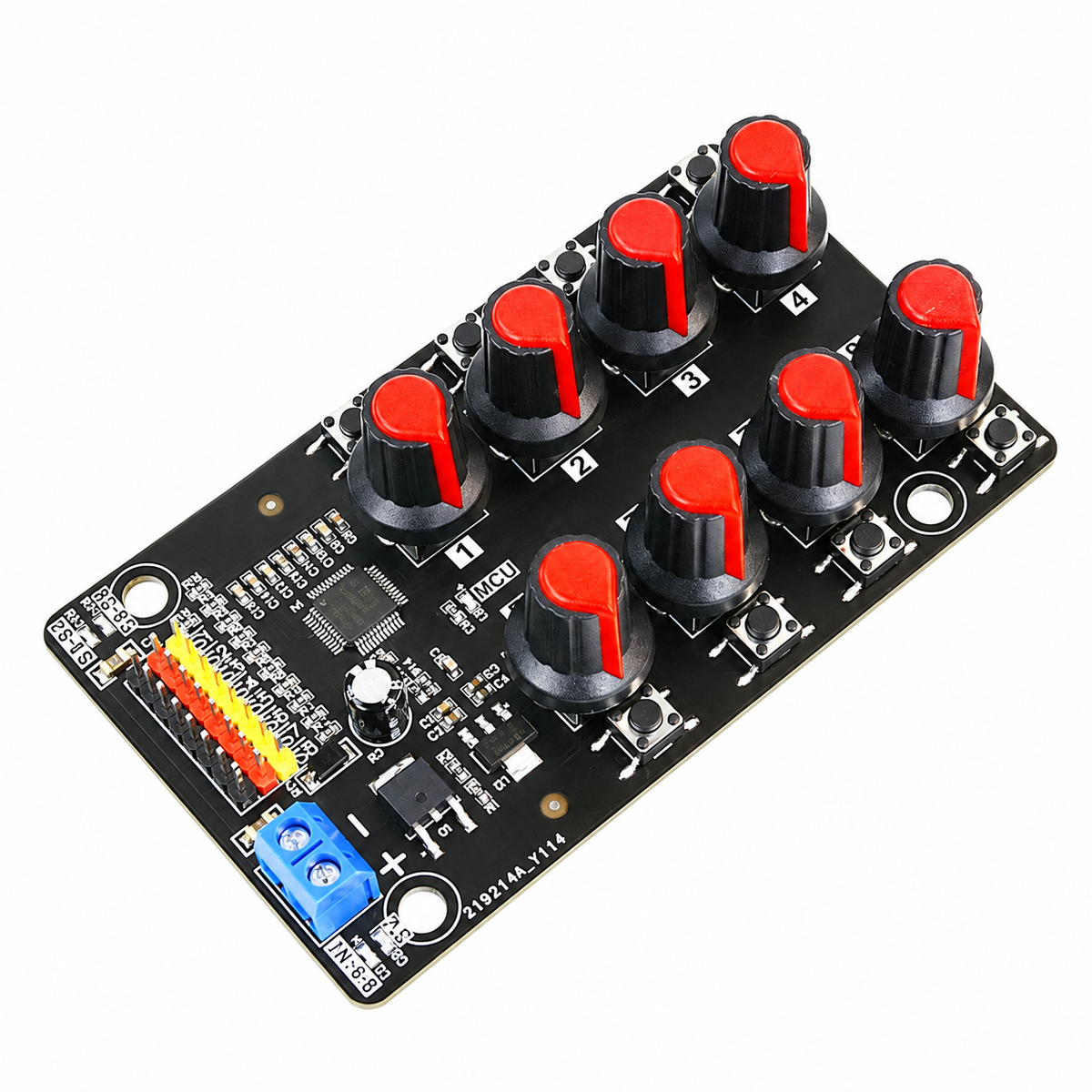

Controller board with eight servo connections, eight adjustment knobs, buttons and a power terminal. Servos and power supply are separate.
Technology
STC8G2K64S4 controller; PWM servo signals.
How it works
The board converts the knob or button setting into a control-pulse width. A compatible servo interprets that pulse as a requested position, allowing you to check its response before integrating it into a robot.
Specifications
- Kit type: Servo Controller.
- Control and interfaces: STC8G2K64S4 controller; PWM servo signals.
- Selected option: Eight-channel board — servos and power supply excluded.
What's included
Selected configuration and described hardware: Eight-channel board — servos and power supply excluded. Controller board with eight servo connections, eight adjustment knobs, buttons and a power terminal. Servos and power supply are separate.
Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.
Suggested skill level
Intermediate — check compatibility and wiring before use.
Project ideas
- Test eight servo positions.
- Tune a small robotic mechanism.
Before you build
Check the documented 5–8.4V servo range, signal requirements and total current draw. Use a correctly rated supply for the connected servos.
