Robot Control Board
ESP32-S3 micro-ROS Robot Control Board
$139.95 AUD
Not sure which kit to choose?Check exactly what comes in the box.
Match the controller, batteries, and tools to your setup.
Read the assembly and coding guide before your first build.
Connect a ROS 2 robot application to motors, servos and motion sensing through one control board.
Functions
- Drive four supported encoder motors and two PWM servo channels.
- Read the onboard six-axis IMU.
- Connect compatible lidar and serial peripherals.
Components & hardware

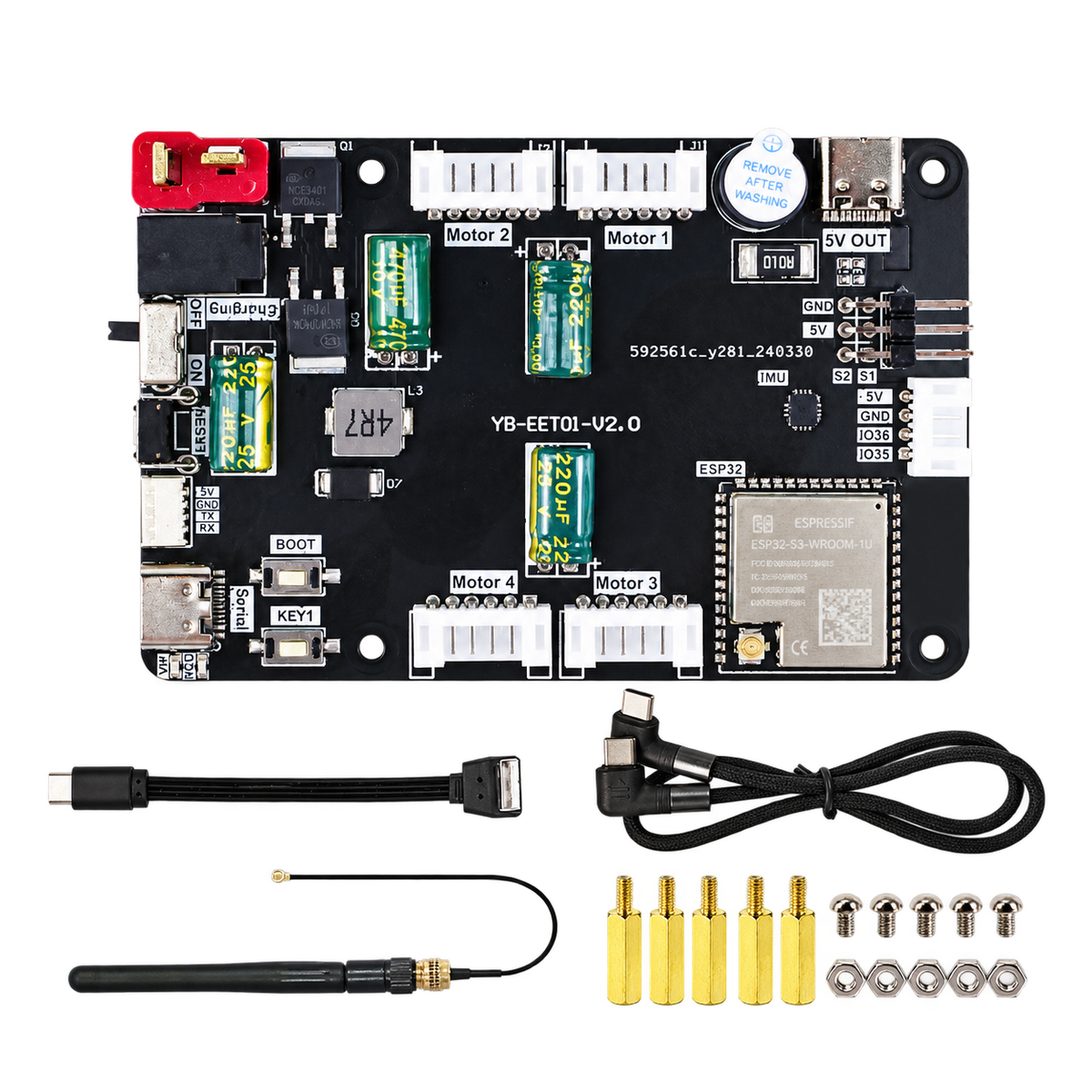

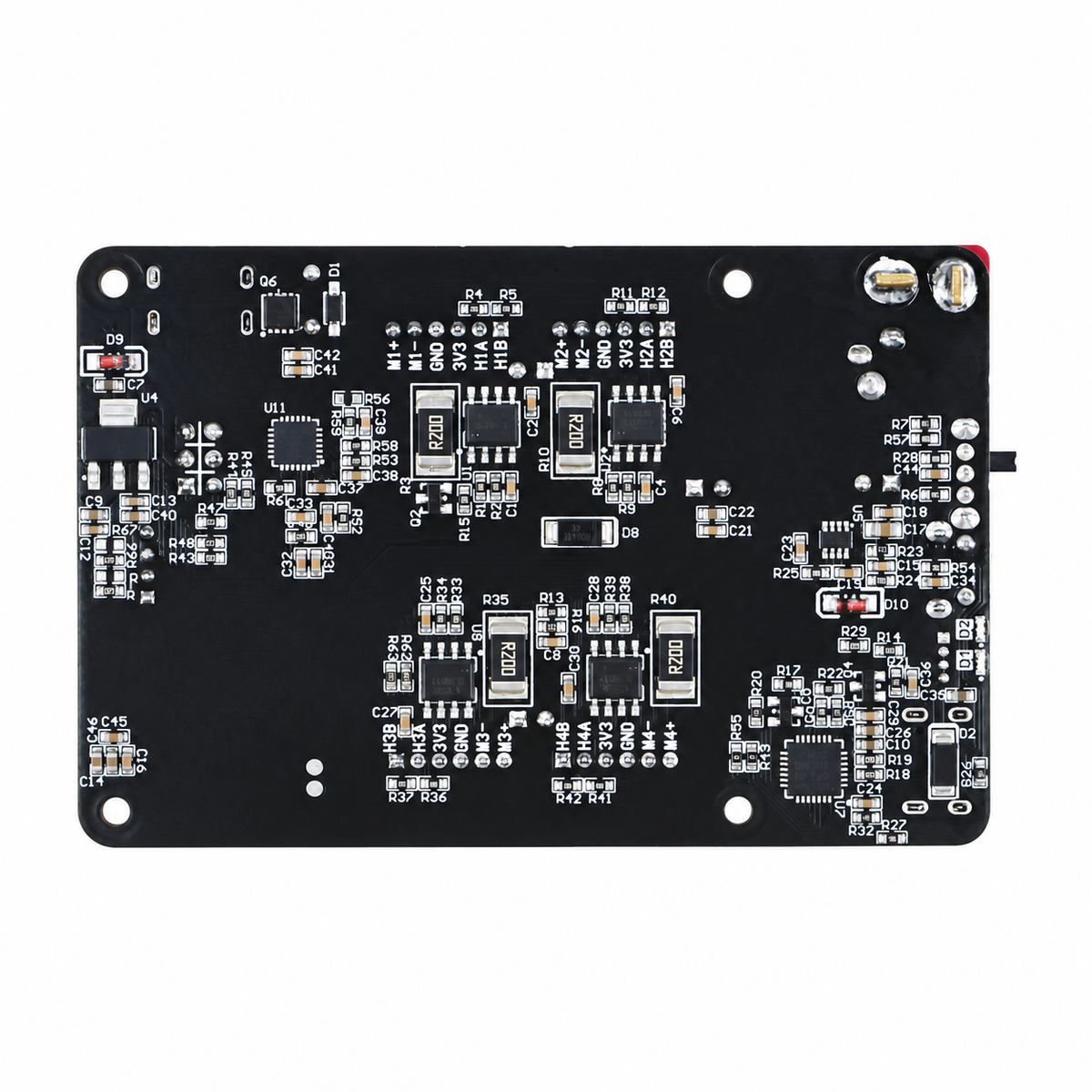

ESP32-S3 control board with drive interfaces, IMU, communication connections, buzzer and lighting; robot hardware is separate.
Technology
micro-ROS firmware; ROS 2 communication over supported Wi-Fi or serial connections.
How it works
The host runs the robot application while the board handles connected peripherals. Commands and measurements pass between them through micro-ROS so the software can respond to the robot's motion.
Specifications
- Kit type: Robot Control Board.
- Platform: esp32.
- Control and interfaces: micro-ROS firmware; ROS 2 communication over supported Wi-Fi or serial connections.
- Selected option: micro-ROS control board only.
What's included
Selected configuration and described hardware: micro-ROS control board only. ESP32-S3 control board with drive interfaces, IMU, communication connections, buzzer and lighting; robot hardware is separate.
Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.
Suggested skill level
Intermediate — assembly and programming experience recommended.
Project ideas
- Publish IMU motion readings.
- Control a compatible encoder motor.
Before you build
Supports ROS 2, not ROS 1. Check motor, lidar and connector pinouts before wiring. Raspberry Pi, motors, lidar and servos are not included.
