Sensor Expansion Board
Pico / Pico 2 Plug-In Sensor Expansion Board
$14.95 AUD
Not sure which kit to choose?Check exactly what comes in the box.
Match the controller, batteries, and tools to your setup.
Read the assembly and coding guide before your first build.
Connect compatible plug-in sensors to a Pico-family controller with a more organised wiring layout.
Functions
- Break out controller pins to module connections.
- Connect supported sensor and servo hardware.
- Mount the board in a building-block project.
Components & hardware

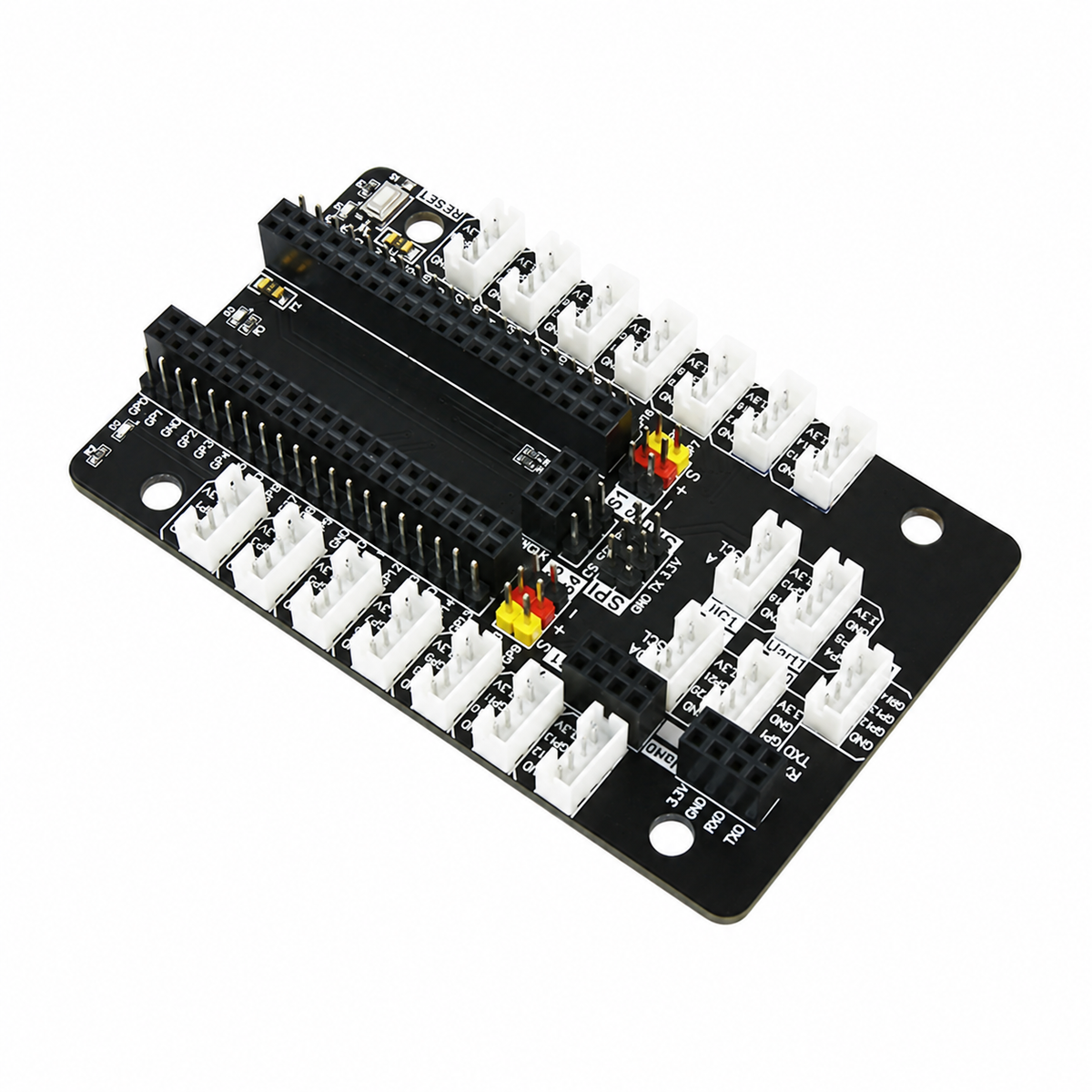

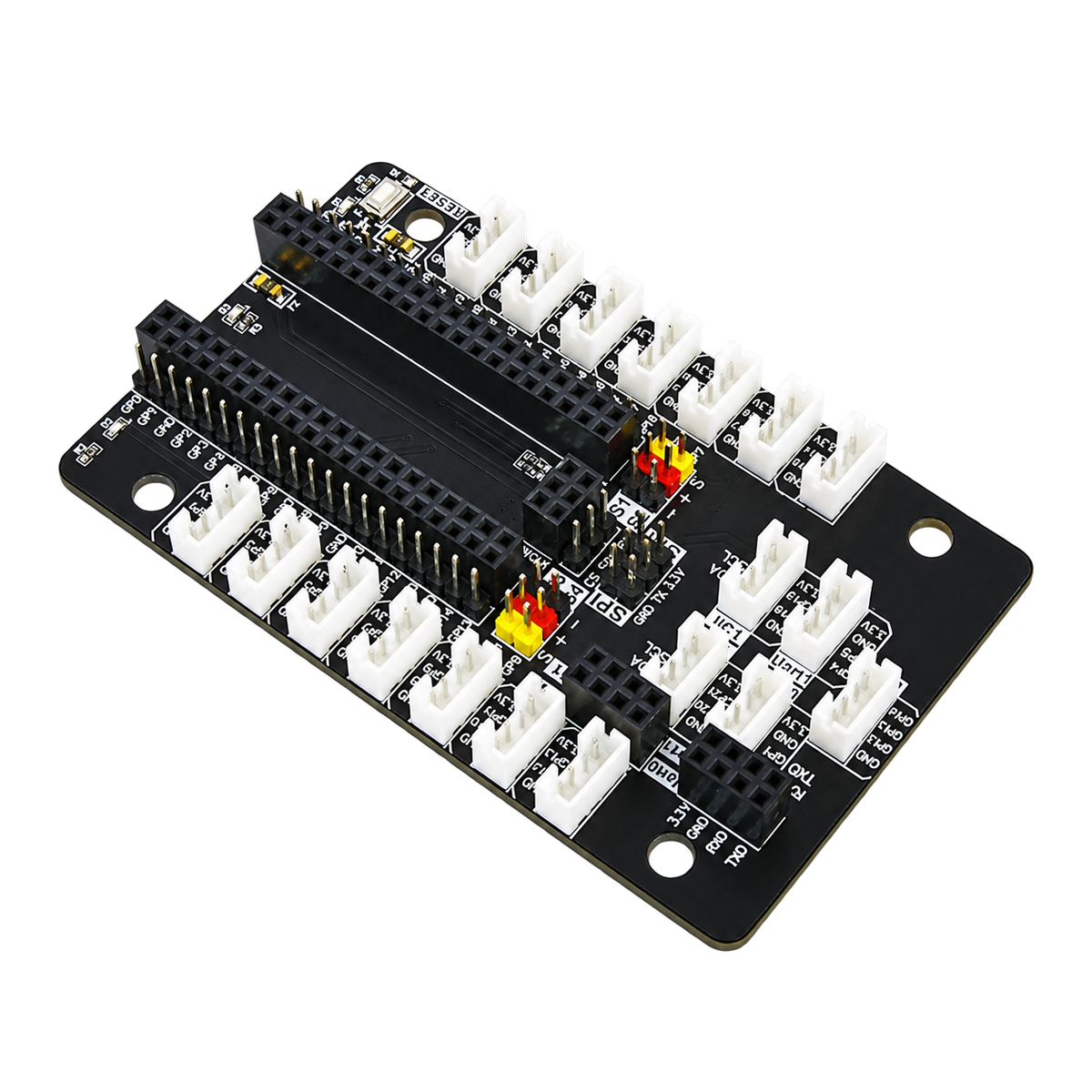

Pico-family expansion board with PH2.0 module connections, servo pins and mounting holes. Main controller and sensors are separate.
Technology
GPIO breakout with power and ground routed alongside signal connections.
How it works
The expansion board routes the Pico's pins to convenient connectors. It does not run your program; the installed controller still reads sensors and generates output signals.
Specifications
- Kit type: Sensor Expansion Board.
- Platform: pico.
- Control and interfaces: GPIO breakout with power and ground routed alongside signal connections.
- Selected option: Pico / Pico 2 expansion board — controller excluded.
What's included
Selected configuration and described hardware: Pico / Pico 2 expansion board — controller excluded. Pico-family expansion board with PH2.0 module connections, servo pins and mounting holes. Main controller and sensors are separate.
Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.
Suggested skill level
Intermediate — check compatibility and wiring before use.
Project ideas
- Connect two compatible sensors.
- Prototype a servo-and-sensor model.
Before you build
Controller excluded. Select the Pico board version and verify module pinout, voltage and connector assignment; similar-looking module cables are not automatically interchangeable.
