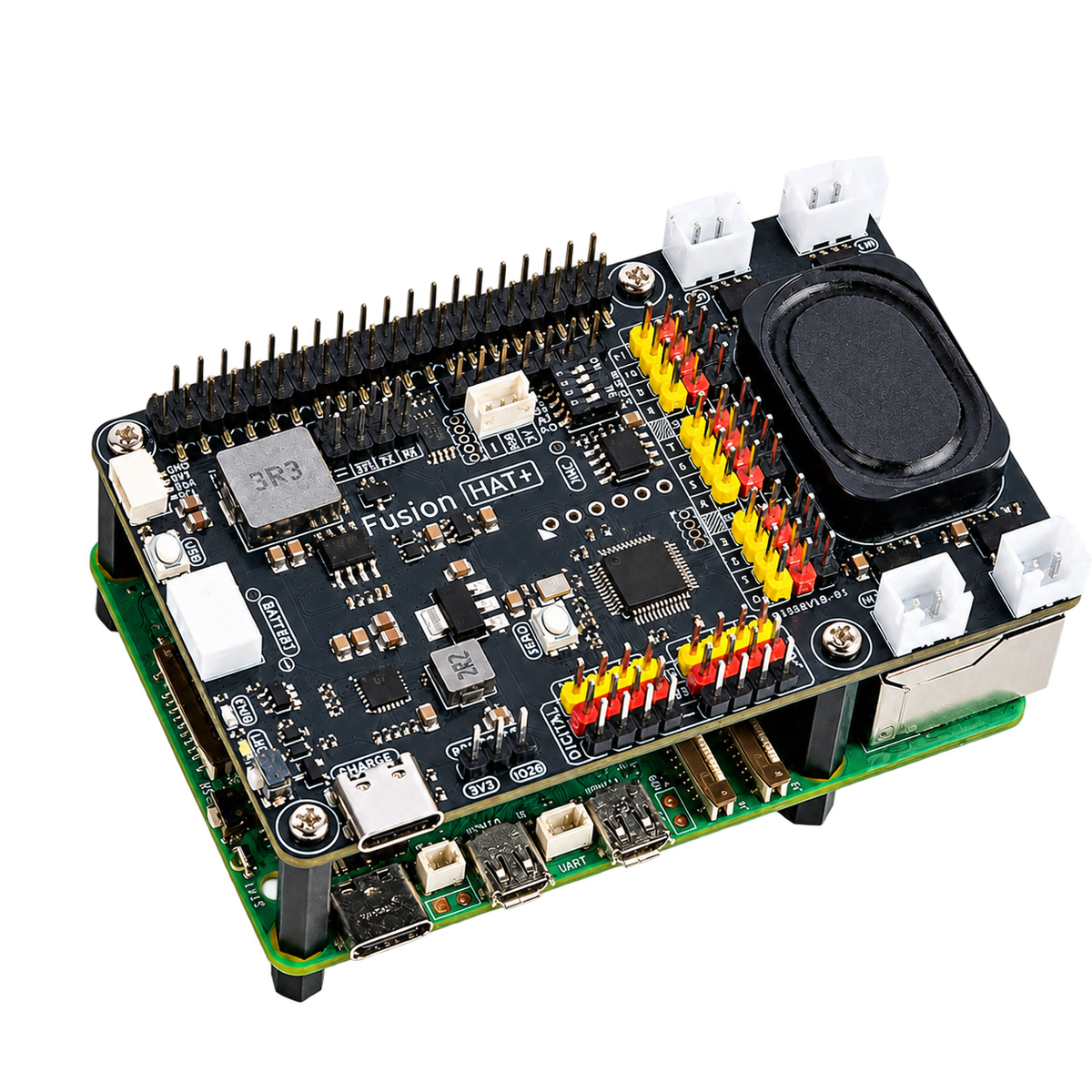

Raspberry Pi Motor, Servo & Audio HAT+ — product view. HAT+ expansion board — Raspberry Pi excluded. Raspberry Pi shown beneath the board is not included. Enlarge image
Raspberry Pi Motor, Servo & Audio HAT+ — product view. HAT+ expansion board — Raspberry Pi excluded. Raspberry Pi shown beneath the board is not included.

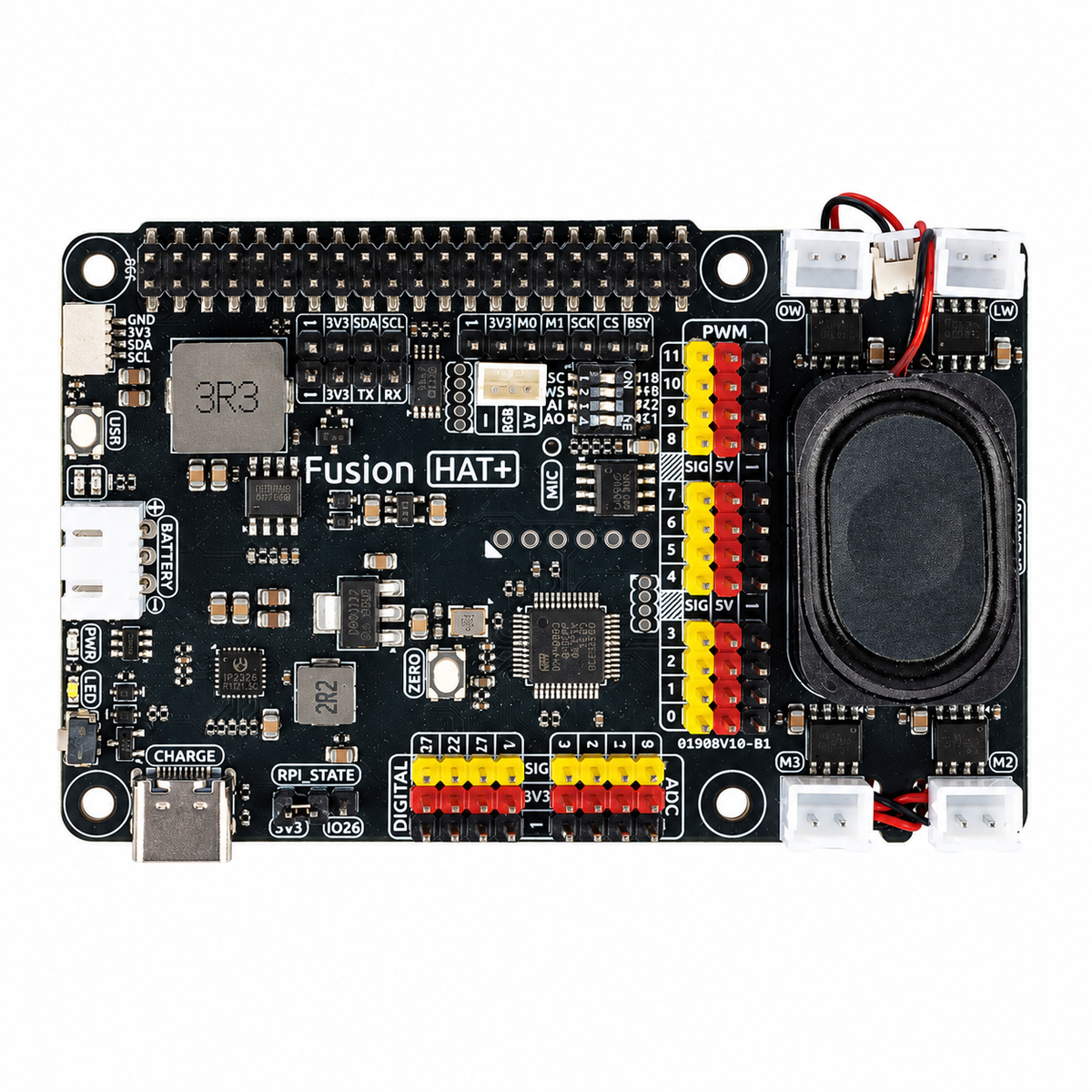

Raspberry Pi Motor, Servo & Audio HAT+ — additional product or project detail. HAT+ expansion board — Raspberry Pi excluded. Any separately required main controller shown in an example is excluded. Enlarge image
Raspberry Pi Motor, Servo & Audio HAT+ — additional product or project detail. HAT+ expansion board — Raspberry Pi excluded. Any separately required main controller shown in an example is excluded.

Browse the views. Check the selected configuration for included parts; project examples may show separate accessories.

Robot Expansion Board

Raspberry Pi Motor, Servo & Audio HAT+

Programmable robotics kit Controller sold separately

$79.95 AUD

Kit configurationHAT+ expansion board — Raspberry Pi excluded

Not sure which kit to choose?
01 /

Check exactly what comes in the box.

02 /

Match the controller, batteries, and tools to your setup.

03 /

Read the assembly and coding guide before your first build.

Give a compatible Raspberry Pi the hardware interfaces needed for a more capable robot.

Functions

  • Control four DC motors and up to twelve PWM servo channels.
  • Read analogue inputs and connect serial peripherals.
  • Explore projects using onboard audio hardware.

Components & hardware

HAT+ expansion board with motor drivers, PWM outputs, four 12-bit ADC inputs, microphone, speaker, power management and I2C/SPI/UART interfaces.

Technology

Raspberry Pi-compatible expansion; Python control libraries.

How it works

The Raspberry Pi runs the application while the HAT supplies the motor, servo and analogue interfaces. This separates high-level software from the electrical work of controlling peripherals.

Specifications

  • Kit type: Robot Expansion Board.
  • Platform: raspberry-pi.
  • Control and interfaces: Raspberry Pi-compatible expansion; Python control libraries.
  • Selected option: HAT+ expansion board — Raspberry Pi excluded.

What's included

Selected configuration and described hardware: HAT+ expansion board — Raspberry Pi excluded. HAT+ expansion board with motor drivers, PWM outputs, four 12-bit ADC inputs, microphone, speaker, power management and I2C/SPI/UART interfaces.

Exact quantities and minor accessories should be checked against the supplier's packing list before ordering.

Suggested skill level

Intermediate — check compatibility and wiring before use.

Project ideas

  • Control a motor and servo sequence.
  • Read analogue input alongside audio output.

Before you build

Raspberry Pi is excluded, including when pictured beneath the board. Match the board revision, power supply and software. Optional cloud AI services require separate setup and may charge usage fees.
